ROTORX ATOM V3 PRO (DIY)

$399.00
Current stock: 0
Description

Face Melting Fun! The Smallest Ready To Fly FPV Racing Drone Ever!

RotorX Atom V3 122mm Mini Quadcopter DIY ARF Pro Kit

Includes the core components FC / ESC's / T-Motors 1406kv Motors / OSD / VTX / FPV Camera / Frame / Canopy

Will Need: DSMX Compatible Radio, 3S Battery And Goggles

We Sell Extra Supplies: Motors, Props, Flight Controllers, ESC's, Canopies And OSD/VTX Boards

To View The Atom V3 Build Guide And Build Videos Click Here

The RotorX RX122 Atom V3 is a tiny 122mm size quadcopter and weights less than 250 grams. It fits in the palm of your hand, but don't be fooled! The Atom accelerates faster than a FORMULA 1 Car allowing you to enjoy FPV Racing without all the stress maximum agility, enjoyment and no limitations! No FAA registration needed.

The RotorX RX122 Atom V3 is one of the most advanced micro drones on the market. RX122 Atom V3 is the child of the marriage between Team Black Sheep and RotorX. This micro drone features a compact yet advanced brain, TBS RxCube, engineered by the great guys at TBS specifically for Atom V3. Atom V3's brain is a stack design containing a flight controller, ESCs and a VTX/OSD combo. Atom V3's electronics are housed in an indestructible polycarbonate canopy that comes in variety of colors to suit your preference.

The Ultimate Out of Body Experience
This is the ultimate out of body experience. It puts you in an entirely new dimension with your surroundings. Feel the thrill of flying like you’ve never had before. Putting you in an entirely new dimension with your surroundings.

Superb Handling - Built for tight space flying, perfect for indoors or outdoors
RotorX micro drones are designed for maximum functionality and performance.Our lightweight drones are optimized for fast speed, superb handling, and immense power.


Palm size 122mm and it's lighter than 250g - No FAA Registry Needed
The Atom weighs less than 5 ounces, well under 250 grams, so No FAA registration is necessary. The Atom is a 122mm size quadcopter, half the size as our competitors. Larger drones need more space to fly in, while the Atom can fly inside the house, or out in a huge field, and everywhere in-between.

The Perfect Drone for First Time Pilots
Go ahead and crash it. The Atom can handle it. The Atom is reliable, resilient, safe and affordable. Crash it over and over and over again. It’s lightweight, carbon fibre construction makes it the most durable racing drone on the planet. All components are easily repairable, customizable and readily available.

Premium Build Quality
Cutting edge drone technology meets open source development. RotorX are the pioneers of micro scale drone racing technology, including custom designed high performance motors and propellers. Atom was designed from the ground up by pilots for pilots. With over 1000s of hours of beta testing, our prototypes have been tried and tested by over a 500 different drone pilots.

Features:

  • Addressable LEDs can be set to any color you desire
  • Just the basics, to get you in premium gear you can grow with
  • Smooth and locked-in tune - Thanks Magnus from TBS and our RotorX team pilots
  • Industry leading electronics from TBS and Highest performing drivetrain from RotorX

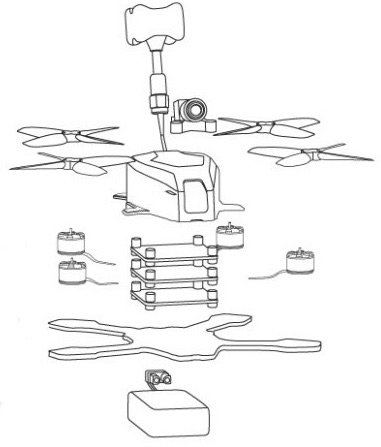

The Atom V3 DIY Kit (Unassembled) Includes:

  • 2 x M3x6mm Steel Hex Screw (Black)
  • 2 x M3x12mm Steel Hex Screw (for mounting through selected cam mount and canopy)
  • 2 x M3x6mm Countersunk Philips Head screw (For mounting SMA adapter to canopy)
  • 2 x M3x6mm Raw Aluminum standoffs (for mounting top rear of power cube for canopy)
  • 4 x RX1406 motors (including mounting hardware in bags)
  • 8 x RX3040T propellers (with adapters nuts and screws)
  • 1 x TBS/RX 2in1 Silabs ESC layer (Pre-assembled)
  • 1 x Colibri Flight Controller layer (Pre-assembled)
  • 1 x PDB layer VTX/OSD/DCDC/5V Reg (Pre-assembled)
  • 1 x Plastic Cube base plate with 2 x M3x7mm Countersunk Screw (for frame mounting)
  • 1 x Atom Canopy (Polycarbonate) Black
  • 1 x XT30 connector with 70mm Cable (Pre-assembled/Soldered)
  • 1 x FPV Camera (cc1563) with 110deg fov lens
  • 3 x FPV Camera mounting plate (15/30/45 degrees)
  • 1 x 5.8ghz Linear Whip – uFL connector
  • 1 x RPSMA uFL Adapter
  • 1 x TBS Triumph CP Antenna
  • 2 x Rubber stick pads for battery friction mounting
  • 1 x Battery Strap



Specifications:

  • RotorX RX122 Atom V3 3K Carbon Fiber frame, 4mm thickness with 2mm routing
  • T-Motors 1406 4100kv motors (made by T-Motor, you knows its good!)
  • RotorX RX3040T propellers
  • Micro 600TVL CMOS FP Camera 110 degrees FOV
  • Injection molded Poly Carbonate canopy for protection and styling
  • Injection molded camera mounts, allowing 15-45 degrees of camera tilt angle
  • Team Blacksheep RXCube designed for the RX122 Atom
  • STM32 F3 Flight Controller running BetaFlight (Fastest F3 Flight Controller available)
  • COREPRO OSD (On Screen Display) built in displays Battery Voltage, Amps and Timer
  • Regulated and filtered power for Cam and VTX (5V / 12V / VBAT switchable)
  • Buzzer for finding lost models and battery status notification
  • Addressable LED's display Atom status and video channel
  • TBS Unify Pro VTX (25-800mw) with selectable Band Channel and Output power
  • Silabs based 2-in-1 ESC layer that allows 20A continuous, 14A peak ESC (each ESC) 2-6S capable
  • Current Sensor : 100A sense, 250A peak throughput
Reviews

Reviews (2)

SE Stanton 27th Feb 2017

Go ahead and buy two

This was my first build and there were a few problems that I encountered- •Motor wires on the front arms are not quite long enough but I got them to work. •There is very little room inside the canopy for the receiver (I used the FrSky XSR) so when it's tightened down it presses the bind button and goes into bind mode... but I made it work with a little ingenuity. •The battery strap could be a touch longer to accommodate the 4s 860mah lipo. First day out I lost a new battery. Zip ties are your friend. Now for the 5 stars this thing gets is straight from the insanity of flying at the speed of thought right into a tree, pick it up, straighten some props, and repeat. It's a far cry from the tiny whoop I learned on just a month ago and the 4s adrenaline rush will leave your hands shaking with a new addiction. I'm now considering buying another one for my back up quad instead of moving up to a 4 or 5 inch. Plus this thing only weighs 247grams with a 860mah lipo so there's no need to register with the faa. Overall I have been very pleased with the performance and especially the durability. I will buy another. Oh and don't forget to order extra props.

Bill Decker 18th Feb 2017

Angry whoop in your face!

I've owned several Atoms. The V1 was a nightmare to build! The V2 introduced the power block and the new nylon canopy...The new V3 incorporates the newest 4s power block, which houses most of the major upgraded components. Because of its small size and mass, Atoms are virtually indestructible. You won't be disappointed with this micro. NOTE: This is NOT an indoor quad, and I wouldn't recommend this for beginners! It is angry on 4s 800maH lipo, and it's ready to race! ...You've done it again RotorX. I look forward to the 5 and 6" Atoms, coming soon!!! RotorX makes a HD camera for this called the RXHD which should be out shortly!

Specifications

Specifications

SKU:
RX-ATOM-V3-PRO
