Alpha Bravo Charlie - Combo Pack

×
×
Rating:
Price:
$75.00
SKU:
Alpha-Bravo-Charlie-Combo-Pack
Weight:
4.50 LBS
Shipping:
Calculated at checkout
Quantity:

Cart

Description
Reviews
Related Products
Product Videos
Warranty
Also Viewed
By Category
Other Details
  • Product Description

    The FT Bravo was designed and created by FT STEM students to showcase the Engineering and Design Learning Strand of our curriculum, Click here for more info. Proceeds of this project along with all the STEM Series aircraft will go towards supporting schools take flight using FT STEM.

    The combo pack comes will all three Alpha, Bravo, Charlie kits, each having their own unique look and flight characteristics. Each airplanes’ wings are built to be removable from the fuselage, and can be swapped with any of the other Triad planes, giving the builder essentially 9 planes in one package. The swapping of wings takes less than a minute and is supported by rubber bands. There is no need to re-calibrate the center of gravity on the aircraft after swapping, the CG remains the same no matter what combination you configure. This is great for the flight line and swapping with others, making it an enjoyable experience for all. The Triad project is also great for the classroom setting, it allows for students to test the effects of aircraft design and its impact on flight performance.  With the ability to change wings, it allows the students to design their own unique wing that can be tested on either of three Triad fuselages, meeting the Inquiry and Design Learning strand of FT STEM curriculum. We want you to have an amazing experience both in building and flying. This kit comes with everything you need to complete the Triad Aircraft. Push-rods, control horns, firewalls and all other items needed to make this airframe electronics ready are included in the kit. If you choose to purchase our power pack F and battery, balance, flight performance and assembly will be quick and easy.

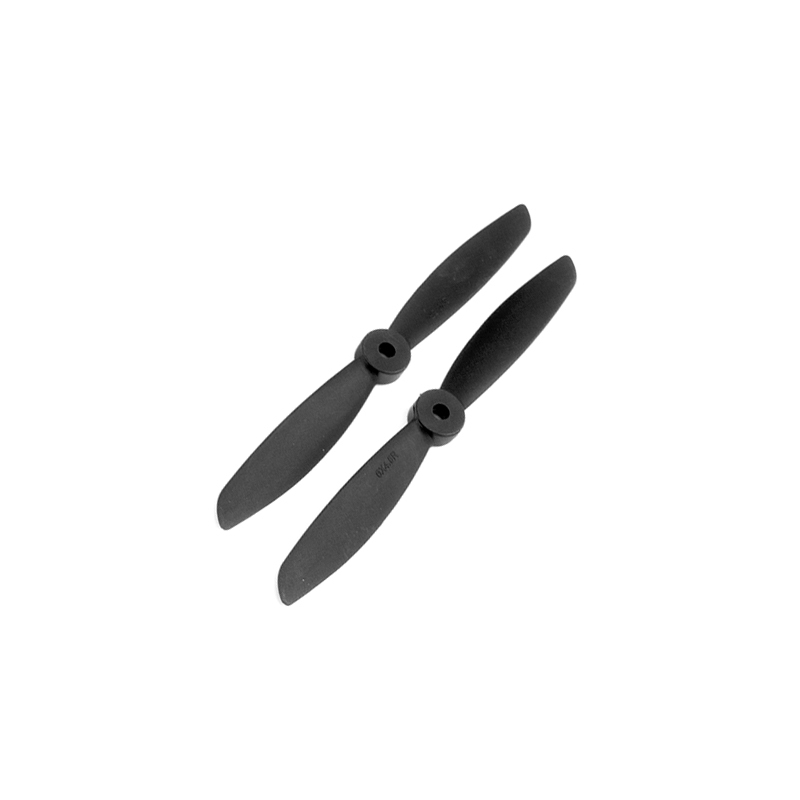

    Get Another Power Pack                    More Batteries                    Props For This Kit

        powerpackf-xt30-web-20319.1461774035.1280.1280.jpg                      8503s-web-06452.1472566280.1280.1280.jpg               6045r-web-32540.1458583327.1280.1280.jpg

    Three Kits In The Combo Pack Include:

    • 3 FT  Foam Kits
    • 3 Velcros
    • 6 16.5" Pushrods
    • 6 Skewers
    • 6 Rubber Bands
    • 6 Zip Ties
    • 3 Mini Firewall/Control Horn Combos
    • 1 Alpha, 1 Bravo and 1 Charlie Decal Sheets
    • 1 Stem Data Sheets
    • 3 Combo Sticker Packs



    FT Alpha, Bravo & Charlie Share Simular Specs:

    • Weight Without Battery: 8.1 oz (230 g)
    • Center Of Gravity: 14 inches (355 mm) from the nose
    • Control Surface Throws: 16 degree deflection/ Expo 30% (increase based on skill)
    • Wingspan: FT Alpha 24 inches (609 mm) / FT Bravo 24 inches (609 mm) / FT Charlie 28 inches (711 mm)
    • Recommended Motors:2300 kv 2204 size motor
    • Recommended Props: 6.45 CW Reverse Prop
    • Recommended ESCs: 12 amp minimum
    • Recommended Batteries: 850 MAH 3S
    • Recommended Servos: 2x 5 gram servos



    Flite Test Build Videos



    Please watch recent build videos before removing any paper from the foam! Some videos may use white foam board, which is no longer available and has now been replaced with water-resistant foam board.

  • Product Reviews

    ×

    Write A Review

    1. A lot of fun, easy build

      I bout this kit because it looked great, is affordable, and supports STEM. This was relatively easy for someone new to the hobby when you follow along with the instruction video. This is my first flying RC build, and I like the foam board build. I built the Alpha first. It flies quite nicely, even for someone with no experience. I look forward to a lot more air time. F pack pairs well to provide power. Climbs out great, flies stable and can fly slow for us newbies. I am impressed with the Alpha. I hope the other two fly just as well. on 8th Feb 2017

    2. ALPHA BRAVO CHARLIE - COMBO PACK

      Easy build. Definitely a learning curve on the Alpha. By Bravo, my build was almost flawless. Canopy build was better on the bravo. I am sure after I build the charlie, it would be perfect. I painted the Alpha with gray primer. It was a bit hard to see against the sky background, so I added yellow stripes on the wing to make it visible. I've painted the Bravo with Blue Angels paint scheme. Overall, I am really satisfied with the pack. I am confident, I can rebuild using just the plans and foam board. Thanks Flitetest. One more thing, I really like the idea that part of the sales go to the schools. on 1st Jan 2017

    3. Thank you guys for all that you do for the Hobby

      Hey guys, I purchased the alpha, bravo, charlie combo pack for my son and his friends for Christmas. We discovered we were missing one fuselage. Anyway you can send us another?

      on 29th Dec 2016
